SCHNEIDER ELECTRIC USA INC

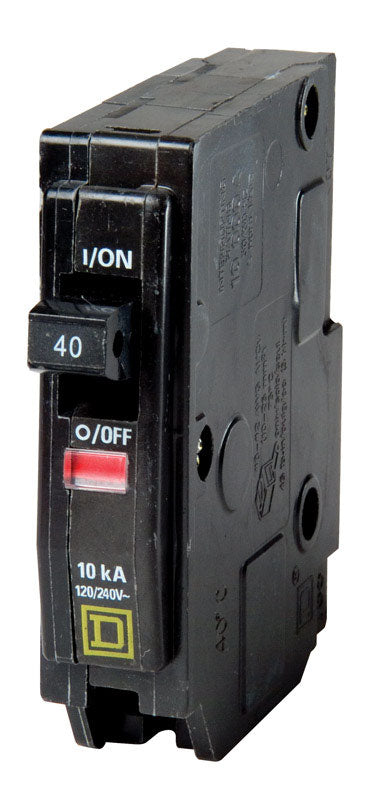

Square D QO 40 amps Plug In Single Pole Circuit Breaker
Square D QO 40 amps Plug In Single Pole Circuit Breaker
$17.99 USD
Sale
Sold out
Couldn't load pickup availability
Overview
The Square D by Schneider Electric QO 40 amp One-Pole Circuit Breaker is intended for overload and short-circuit protection of your electrical system. The ANSI-certified and UL-listed unit is rated for 120/240 VAC and 10,000 AIR. All QO circuit breakers are equipped with the exclusive Visi-Trip indicator. When a QO Visi-Trip circuit breaker trips, the handle snaps to a midpoint position between "OFF" and "ON" and a highly visible, red indicator easily identifies the tripped breaker. This enables you to easily distinguish which breaker has tripped in a load center that may contain up to 42 different circuit breakers. QO circuit breakers have features no other manufacturer can offer.
Specifications
| Amps | 40 ampere |
| Brand Name | Square D |
| CSA LIsted | Yes |
| Circuit Protection Type | Plug In |
| Depth | 3.0 inch |
| Height | .75 inch |
| Mounting Type | Plug-In |
| Number of Poles | Single Pole |
| Number of Spaces | 1 space |
| Packaging Type | Sleeve |
| Product Series | QO |
| Sub Brand | QO |
| UL Listed | Yes |
| Volts | 120/240 volt |
| Width | .75 inch |
| Indoor or Outdoor | Indoor |
