SCHNEIDER ELECTRIC USA INC

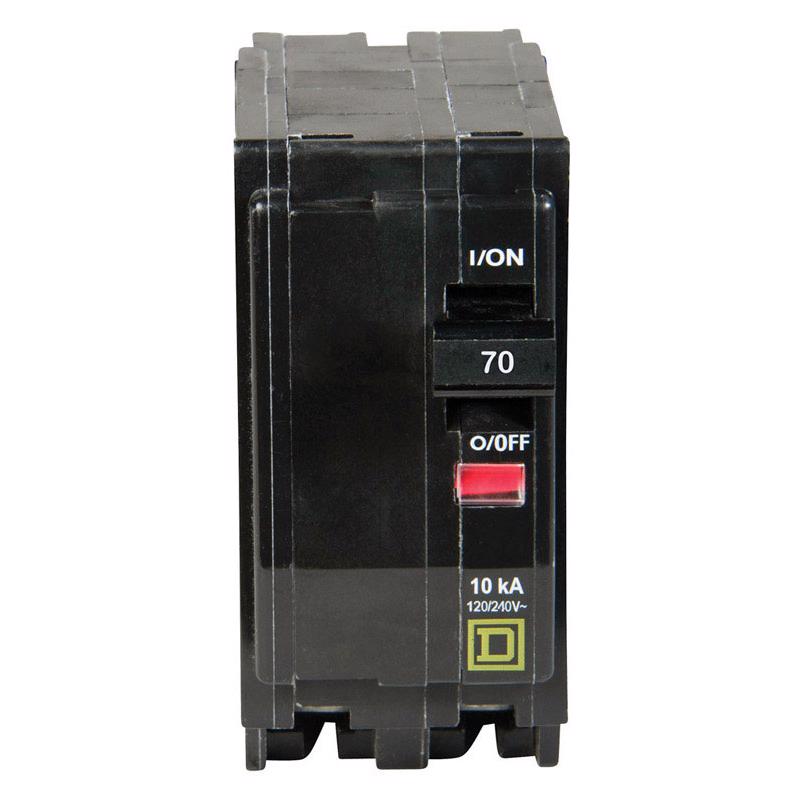

Square D QO 70 amps Plug In 2-Pole Circuit Breaker
Square D QO 70 amps Plug In 2-Pole Circuit Breaker
$79.99 USD
Sale
Sold out
Couldn't load pickup availability
Overview
The Square D by Schneider Electric QO 70 amp two-pole circuit breaker is intended for overload and short-circuit protection of your electrical system. The ANSI-certified and UL-listed unit is rated for 120/240 VAC and 10,000 AIR. All QO circuit breakers are equipped with the exclusive visi-trip indicator. When a QO visi-trip circuit breaker trips, the handle snaps to a midpoint position between "OFF" and "ON" and a highly visible, red indicator easily identifies the tripped breaker. This enables you to easily distinguish which breaker has tripped in a load center that may contain up to 42 different circuit breakers.
Specifications
| Amps | 70 ampere |
| Brand Name | Square D |
| CSA LIsted | No |
| Circuit Protection Type | Plug In |
| Depth | 2.92 inch |
| Height | 3.5 inch |
| Mounting Type | Plug-In |
| Number of Poles | 2-Pole |
| Packaging Type | Sleeve |
| Product Series | QO |
| Sub Brand | QO |
| UL Listed | No |
| Volts | 120/240 volt |
| Width | 1.48 inch |
| Indoor or Outdoor | Indoor |
