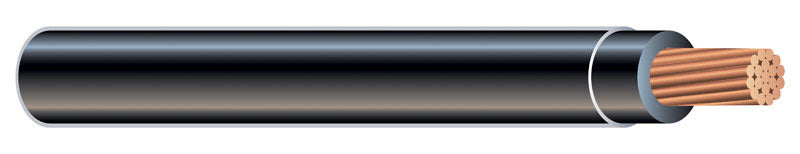

Southwire 500 ft. 2/1 Stranded THHN Building Wire
Southwire 500 ft. 2/1 Stranded THHN Building Wire
$3.99 USD
Sale
Sold out
Couldn't load pickup availability
Overview
Southwire SIMpull THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the national electrical code. Voltage for all applications is 600 volt. SIMpull THHN copper conductors are designed to be installed without application of a pulling lubricant.
Specifications
| Amp Rating | 115 ampere |
| Brand Name | Southwire |
| Cable or Wire Type | THHN |
| Color | BLACK |
| Conductor Gauge | 2 Gauge |
| Conductor Material | Copper |
| Direct Burial | No |
| Flame Retardant | Yes |
| Ground Material | Copper |
| Insulation Material | PVC |
| Jacket Material | Nylon |
| Number of Conductors | 1 |
| Stranded or Solid | Stranded |
| Temperature Rating | 90 |
| UL Listed | Yes |
| Voltage Rating | 600 volt |
| Wet Location Use | Yes |
| Wire Length | 500 foot |
| Gauge/Conductors | 2/1 |
| Indoor or Outdoor | Indoor |
| Sunlight/UV Resistant | Yes |
